Weaveback is a bidirectional literate programming toolchain.

Write your source code inside AsciiDoc (or any text file), assemble named chunks, and let the tool write the real files — then trace any generated line back to its origin, or propagate edits back to the source.

weaveback source.adoc --gen src

What makes Weaveback different

Traditional literate programming is one-way: source → generated code. Edits to generated files must be propagated back manually, and over time the two representations drift.

Weaveback closes the loop. Every generated line knows where it came from and can be traced precisely. Edits can propagate back to the source.

  • Trace any generated line back to its source: weaveback where

  • Propagate edits from generated files back to the document: weaveback apply-back

The source remains the single source of truth — without becoming a dead end.

A simple example

Start from generated code:

// src/events.rs — generated
pub enum PluginEvent {
    PluginLoad,
    PluginUnload,
}

Trace a line back to its origin:

weaveback where src/events.rs:2

→ opens the exact chunk in the literate source.

Or edit the generated file directly:

// src/events.rs — after your edit
pub enum PluginEvent {
    PluginLoaded,
    PluginUnloaded,
}

Propagate the change back:

weaveback apply-back

→ the literate source is updated, preserving consistency.

Language-agnostic fan-out

A single document can define data once and fan it out to multiple files in multiple languages simultaneously.

Add one entry; every target stays in sync.

The example below defines plugin events in AsciiDoc and generates a C header, a Rust module, and a SQL seed file from the same source definition.

%def(event, id, ns, name, description, %{
// <[c enum arms]>=
EVT_%to_screaming_case(%(ns))_%to_screaming_case(%(name)) = %(id),
// @
// <[rust enum arms]>=
%to_pascal_case(%(ns))%to_pascal_case(%(name)),
// @
// <[sql rows]>=
INSERT INTO audit_event_types (id, name, description)
    VALUES (%(id), '%(ns).%(name)', '%(description)')
    ON CONFLICT (name) DO NOTHING;
// @
%})

%event(0, plugin, load,   "Plugin loaded into host")
%event(1, plugin, unload, "Plugin removed from host")

All outputs remain consistent because they originate from the same structured source.

Macro language

The macro system is intentionally simple.

Built-ins — case conversion, %if, %equal — cover common patterns while keeping expansions predictable and traceable.

Macros enable:

  • parameterized code generation

  • structured reuse

  • multi-language fan-out

without introducing a full programming language.

Escape hatches

When the built-in macros are not enough, two scripted extensions are available.

  • %rhaidef — macro body is a Rhai script, compiled into the binary. No external runtime.

  • %pydef — macro body runs in a sandboxed Python interpreter (monty), also compiled in. No Python installation required.

The tradeoff: code produced inside scripted macros cannot be mapped back by weaveback trace. Use them for isolated calculations or string manipulation, not as a primary structuring mechanism.

Agent and IDE integration

Weaveback exposes a set of operations via MCP:

  • Source Tracing: trace a generated line to its exact source chunk.

  • Semantic Intelligence: "Go to Definition" and "Find References" using LSP (Rust, Nim, Python).

  • Literate Diagnostics: see compiler errors and hover info directly in the source document.

  • Contextual Understanding: retrieve full chunk context (code, prose, dependencies).

  • Verified Editing: apply surgical, oracle-verified edits to source files.

This enables a workflow closer to:

trace → understand → modify → verify

rather than blind generation.

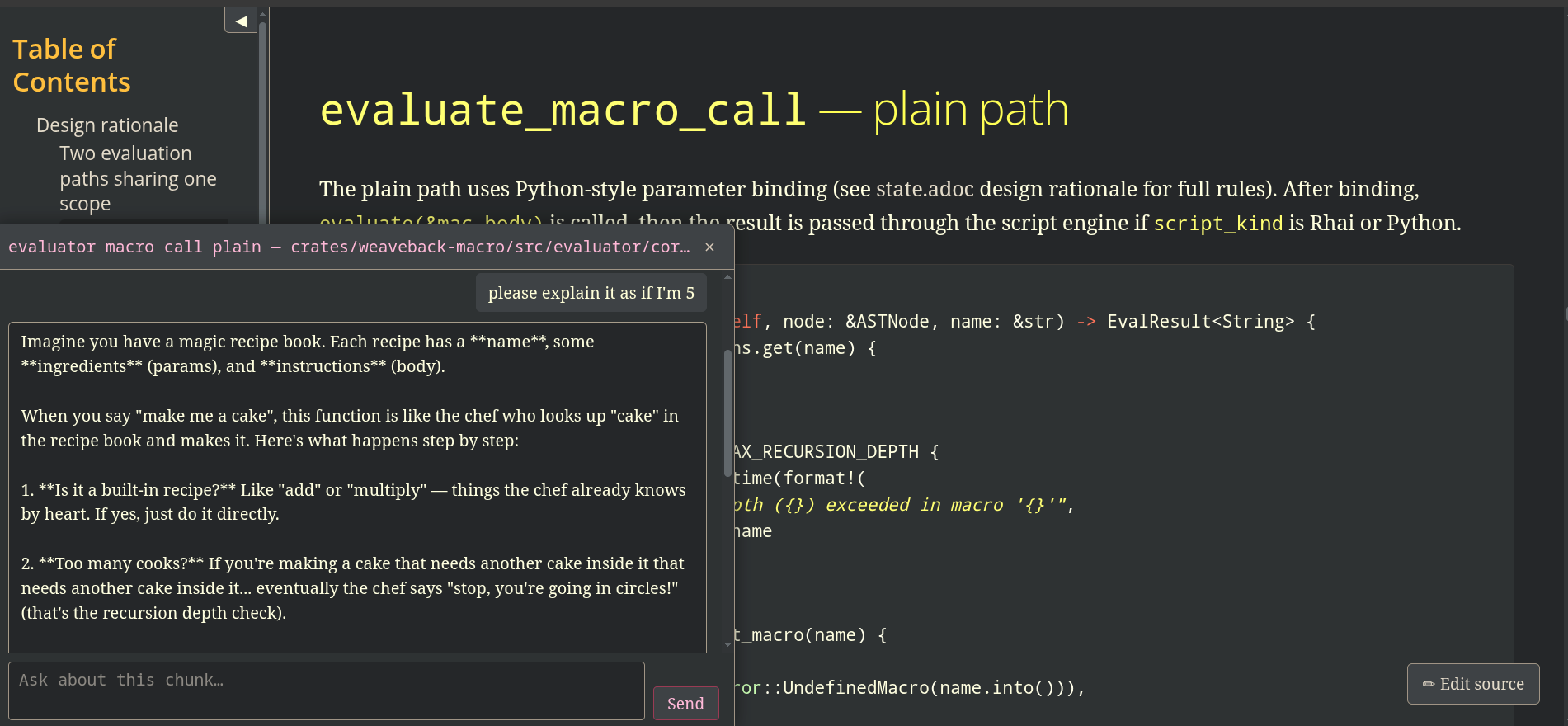

Live documentation server

weaveback serve starts a local HTTP server with live reload, inline chunk editing, and an AI assistant panel that receives full chunk context: source body, surrounding prose and design notes, dependency bodies.

AI assistant panel

Install

Installer script (Linux, macOS, Windows — downloads and installs the binary):

python3 scripts/install.py             # core
python3 scripts/install.py --diagrams  # + PlantUML support

Arch Linux: paru -S weaveback-bin

Nix: nix profile install github:giannifer7/weaveback

Quick binary only (musl, any Linux):

curl -sL https://github.com/giannifer7/weaveback/releases/latest/download/weaveback-musl \
     -o ~/.local/bin/weaveback && chmod +x ~/.local/bin/weaveback

→ Full installation guide

Quick start

cd examples/events
weaveback events.adoc --gen .

Status

Experimental. This is an ongoing exploration of bidirectional literate programming and structured agent integration.

Not production-ready. The focus is on the design, not completeness.

Documentation

Document Contents

CLI reference

All flags and options

Macro language

%def, %if, %rhaidef, %pydef

Chunk syntax

@file, named chunks, composition

Source tracing

trace, apply-back, MCP workflow

Architecture

Pipeline, source maps, server design

Installation

Platforms and binaries

License

0BSD OR MIT OR Apache-2.0
